Waspmote Plug & Sense!

Smart Security

The main applications for this Waspmote Plug & Sense! configuration are perimeter access control, liquid presence detection and doors and windows openings. Besides, a relay system allows this model to interact with external electrical machines.

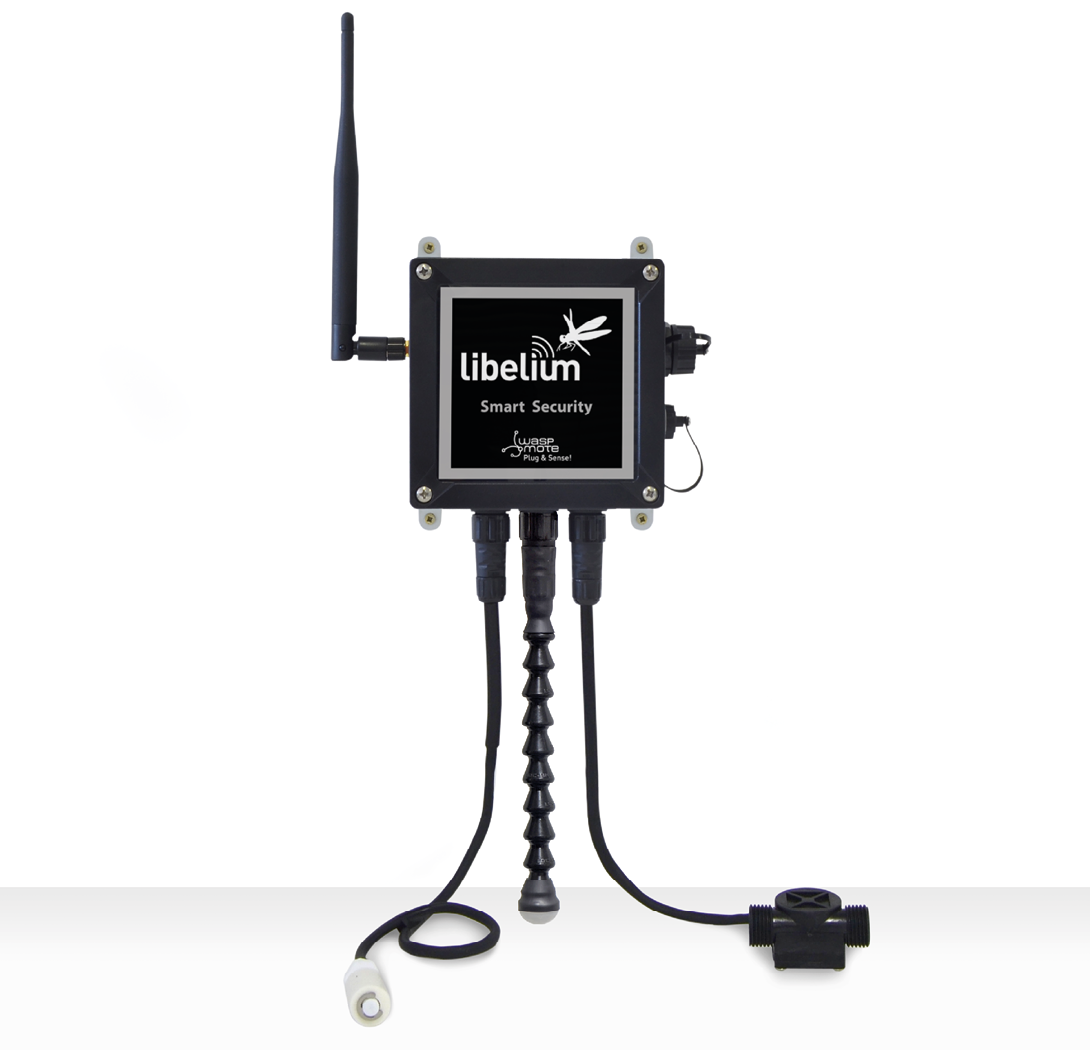

Figure: Smart Security Plug & Sense! model
The probes attached in this photo could not match the final location. See next table for the correct configuration.
In the table below it is shown the sensor socket configuration for Smart Security model:
Sensor socket
Parameter
Reference
A, C, D or E
Temperature + Humidity + Pressure
9370-P
A, C, D or E
Luminosity (Luxes accuracy)
9325-P
A, C, D or E
Ultrasound (distance measurement)
9246-P
A, C, D or E
Presence - PIR
9212-P
A, C, D or E
Liquid Level (combustible, water)
9239-P, 9240-P
A, C, D or E
Liquid Presence (Point, Line)
9243-P, 9295-P
A, C, D or E
Hall Effect
9207-P
B
Liquid Flow medium
9297-P
F
Relay Input-Output
9270-P

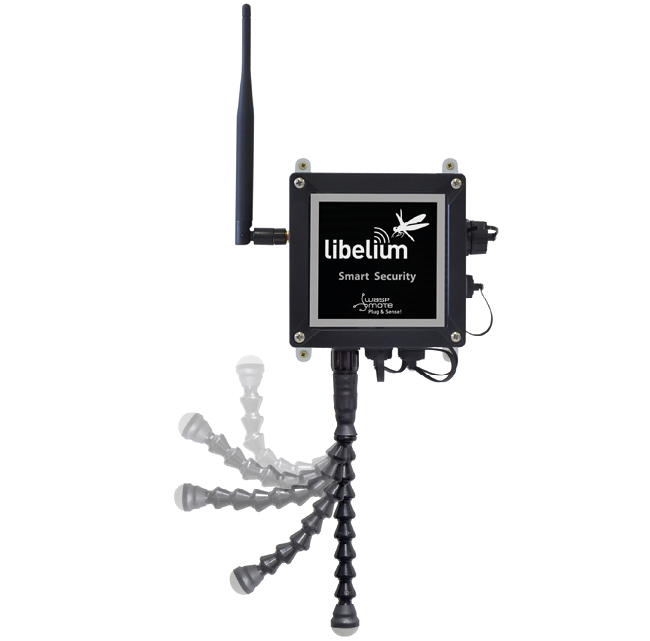

As we see in the figure below, thanks to the directional probe, the presence sensor probe (PIR) may be placed in different positions. The sensor can be focused directly to the point we want.
Figure: Configurations of the Presence sensor probe (PIR)
For more technical information about each sensor probe, go to the Sensors section on this guide:
