Dual radio with Expansion Board

How to connect the module

This module can be connected only to the SOCKET0 placed in the Waspmote board.

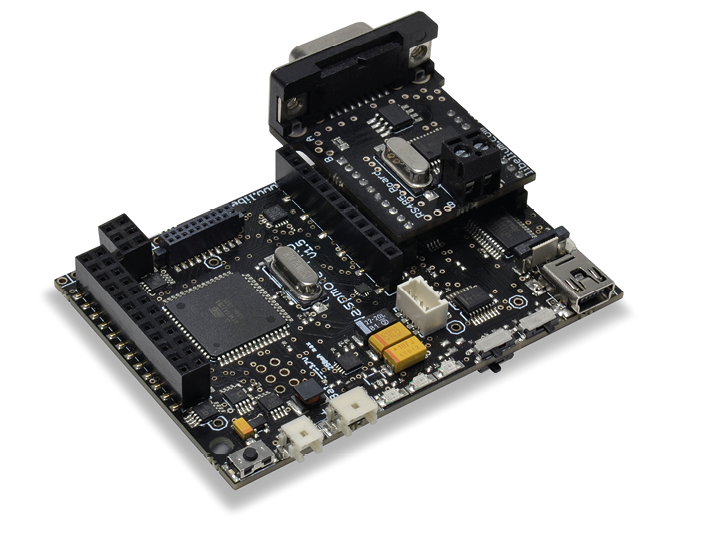

Figure: Module connected to Waspmote in Socket0

Expansion Radio Board

The Expansion Board allows to connect 2 communication modules at the same time in the Waspmote sensor platform. This means a lot of different combinations are possible using any of the wireless radios available for Waspmote: 802.15.4, ZigBee 3, DigiMesh, 868 MHz, 900 MHz, LoRa, WiFi, NB-IoT / Cat-M, 4G, Sigfox, LoRaWAN, Bluetooth Pro, Bluetooth Low Energy and RFID/NFC. Besides, the following Industrial Protocols modules are available: RS-485/Modbus and CAN Bus.

  • LoRaWAN - 4G

  • 802.15.4 - Sigfox

  • 868 MHz - RS-485

  • NB-IoT / Cat-M - WiFi

  • DigiMesh - 4G

  • NB-IoT / Cat-M - RFID/NFC

  • WiFi - 4G

  • CAN Bus - Bluetooth

  • etc

NB-IoT / Cat-M and 4G modules do not need the Expansion Board to be connected to Waspmote. They can be plugged directly in the socket1.

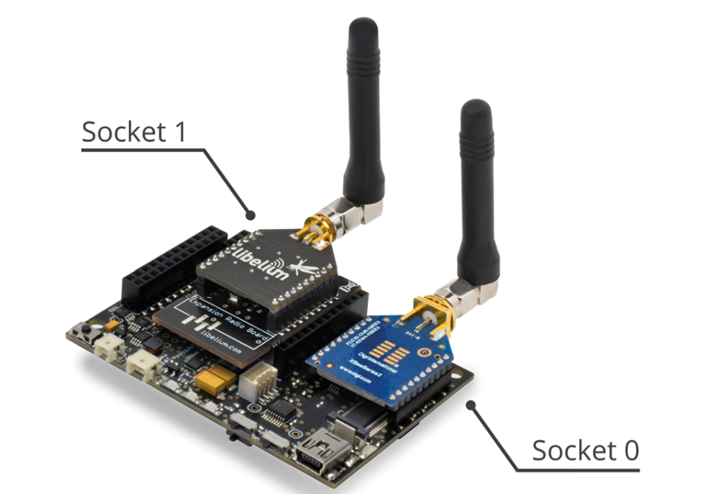

Figure: Dual radio with expansion board

The RS-485 module can be used only in the socket 0. If the user wants to use a wireless radio, he must use the socket 1.

RS-485, CAN Bus and LoRa modules can only be plugged on the socket 0 of Waspmote. That means, for example, that one Waspmote cannot have RS-485 and LoRa at the same time.

Warnings:

  • Avoid to use DIGITAL7 pin when working with the Expansion Board. This pin is used for setting the XBee into sleep mode.

  • Avoid to use DIGITAL6 pin when working with the Expansion Board. This pin is used as power supply for the Expansion Board.

  • Incompatibility with Sensor Boards:

    • Agriculture PRO v30: Incompatible with Watermark and solar radiation sensors

    • Events v30: Incompatible with interruption shift register

    • Smart Water v30: DIGITAL7 incompatible with conductivity sensor

    • Smart Water Ions v30: Incompatible with ADC conversion (sensors cannot be read if the Expansion Board is in use)

    • Gases PRO v30: Incompatible with SOCKET_2 and SOCKET_3

    • Cities PRO v30: Incompatible with SOCKET_3. I2C bus can be used. No gas sensor can be used.
