Hardware

Specifications

The WiFi PRO V3 module is managed by UART and it can be connected to SOCKET0 or SOCKET1. The main features of the modules are listed below:
    TX power:
      802.11b: 18 dBm
      802.11g: 14 dBm
      802.11n: 11.5 dBm
    RX sensitivity:
      802.11b: -80 dBm
      802.11g: -70 dBm
      802.11n: -65 dBm
    Chipset consumption:
      TX mode: 194 mA
      RX mode: 57 mA
      WiFi Scanning: 99 mA
    Internet protocols: ARP, CCMP, IP, UDP, TCP, DHCP, DNS, HTTP, HTTPS, MQTT
    Security protocols: SSL3/TLS1, HTTPS, RSA, AES-128/256, 3DES, RC-4, SHA-1, MD-5, WPA and WPA2. Accelerated in hardware: AES, HASH (SHA-2) library, RSA, ECC, Random Number Generator (RNG)
    Wireless Specifications:
      Standards: IEEE 802.11b/g/n/e/i
      Frequency: 2.4 – 2.48 GHz
      Channels: 1 to 14
    Antenna: Plug and Sense! and Waspmote OEM: PCB trace antenna

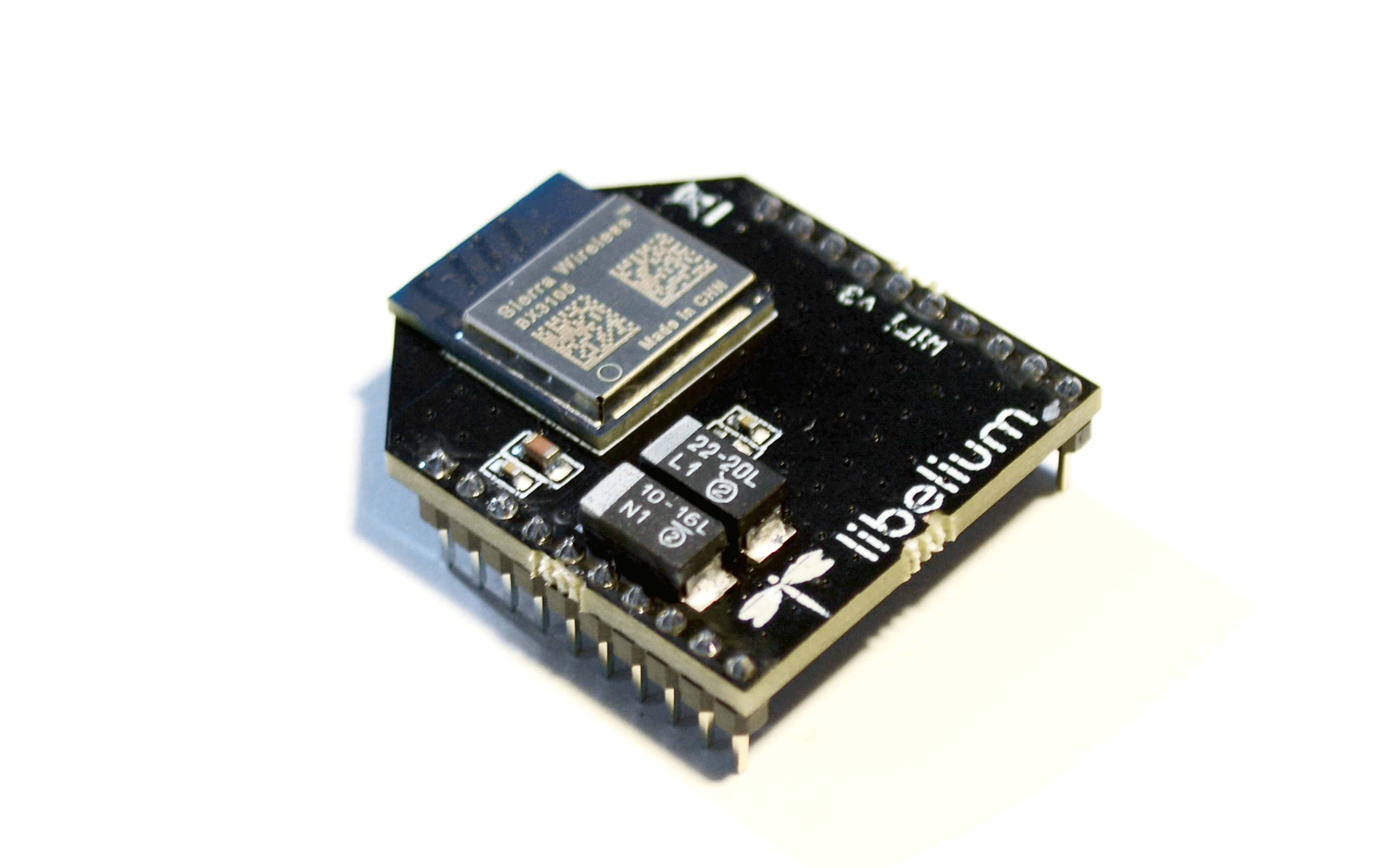

Figure: WiFi PRO V3 module

Power consumption

The WiFi PRO V3 module is powered at 3.3 V. The next table shows the module’s average current consumption in different states.
State
Power consumption
TX data
194 mA
RX data
57 mA

Time consumption

The following table describes the mean elapsed time for some actions in a single test for several attempts:
Action
Time consumption
Power ON
~ 0,6 s
Power ON + join AP
~ 6 s
Perform HTTP GET (already joined AP)
~ 2 s
Some of these actions approximately have a fixed elapsed time like powering on the module or performing HTTP/FTP operations. However, the actions related to join an AP or open the FTP session are dependent on third parts and have more variability from the mean value. For instance, the joining process can take from few seconds to more than 20 seconds.

How to connect the module

This module can be connected to both SOCKET0 and SOCKET1 placed in the Waspmote board.
Figure: Module connected to Waspmote in SOCKET0
In order to connect the module to the SOCKET1, the user must use the Expansion Radio Board.

Expansion Radio Board

The Expansion Board allows to connect 2 communication modules at the same time in the Waspmote sensor platform. This means a lot of different combinations are possible using any of the wireless radios available for Waspmote: 802.15.4, ZigBee 3, DigiMesh, 868 MHz, 900 MHz, LoRa, WiFi, NB-IoT / Cat-M, 4G, Sigfox, LoRaWAN, Bluetooth Pro, Bluetooth Low Energy and RFID/NFC. Besides, the following Industrial Protocols modules are available: RS-485/Modbus and CAN Bus.
Some of the possible combinations are:
    LoRaWAN - 4G
    802.15.4 - Sigfox
    868 MHz - RS-485
    NB-IoT / Cat-M - WiFi
    DigiMesh - 4G
    NB-IoT / Cat-M - RFID/NFC
    WiFi - 4G
    CAN Bus - Bluetooth
    etc
NB-IoT / Cat-M and 4G modules do not need the Expansion Board to be connected to Waspmote. They can be plugged directly in the socket1.
In the next photo you can see the sockets available along with the UART assigned. On one hand, SOCKET0 allows to plug any kind of radio module through the UART0. On the other hand, SOCKET1 permits to connect a radio module through the UART1.
Figure: Use of the Expansion Board
The API provides a function called ON() in order to switch the module on. This function supports a parameter which permits to select the socket. It is possible to choose between SOCKET0 and SOCKET1.
Selecting SOCKET0: WIFI_PRO_V3.ON(SOCKET0);
Selecting SOCKET1: WIFI_PRO_V3.ON(SOCKET1);
The rest of the functions are used the same way as they are used with older API versions. In order to understand them we recommend to read this guide.
Warnings:
    Avoid to use DIGITAL7 pin when working with the Expansion Board. This pin is used for setting the XBee into sleep mode.
    Avoid to use DIGITAL6 pin when working with the Expansion Board. This pin is used as power supply for the Expansion Board.
    Incompatibility with Sensor Boards:
      Agriculture PRO v30: Incompatible with Watermark and solar radiation sensors
      Events v30: Incompatible with interruption shift register
      Smart Water v30: DIGITAL7 incompatible with conductivity sensor
      Smart Water Ions v30: Incompatible with ADC conversion (sensors cannot be read if the Expansion Board is in use)
      Gases PRO v30: Incompatible with SOCKET_2 and SOCKET_3
      Cities PRO v30: Incompatible with SOCKET_3. I2C bus can be used. No gas sensor can be used.
