General description

The purpose of the Waspmote Smart Cities PRO board is to extend the monitoring functionalities from indoor environments to outdoor locations, in order to perform IoT projects in Smart Cities and urban environments. Most of the sensors available for Smart Cities PRO are available for the Gases PRO Sensor Board. Also, the Smart Cities PRO board adds support for the Noise Level Sensor.

Specifications

  • Weight: 20 g

  • Dimensions: 73.5 x 51 x 22 mm (without sensors)

  • Temperature range: [-20 ºC, 65 ºC]

Electrical characteristics

  • Board power voltages: 3.3 V and 5 V

  • Sensor power voltages: 3.3 V and 5 V

  • Maximum admitted current (continuous): 200 mA

  • Maximum admitted current (peak): 400 mA

Advices to plug in AFE on PCB sensors

https://development.libelium.com/gases_pro_sensor_guide/hardware#advices-to-plug-in-afe-on-pcb-sensors

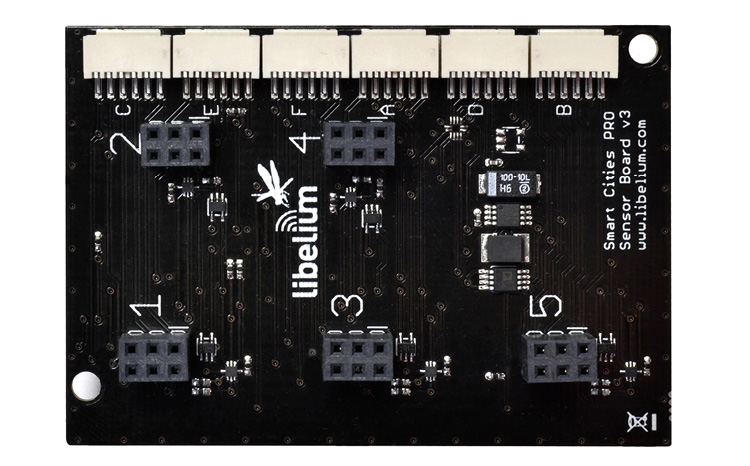

Figure: Top side of the Smart Cities PRO Sensor Board
