Waspmote Plug & Sense!

PreviousSmart Cities PRO v3.0NextHardware

Last updated 2 years ago

Was this helpful?

Smart Cities PRO

The main applications for this Waspmote Plug & Sense! model are noise maps (monitor in real time the acoustic levels in the streets of a city), air quality, waste management, smart lighting, etc. Refer to Libelium website for more information.

Sensor sockets are configured as shown in the table below:

A

Noise level sensor

NLS

A

Noise level sensor V2

NLSV2

A, B, C, E, F

Temperature + Humidity + Pressure

9370-P

A, B, C, E, F

Luminosity (Luxes accuracy)

9325-P

A, B, C, E, F

Ultrasound (distance measurement)

9246-P

B, C, F

Carbon Monoxide (CO) for low concentrations [Calibrated]

9371-LC-P

B, C, F

Carbon Dioxide (CO2 ) [Calibrated]

9372-P

B, C, F

Oxygen (O2 ) [Calibrated]

9373-P

B, C, F

Ozone (O3 ) [Calibrated]

9374-P

B, C, F

Nitric Oxide (NO) for low concentrations [Calibrated]

9375-LC-P

B, C, F

Nitric Dioxide (NO2 ) high accuracy [Calibrated]

9376-HA-P

B, C, F

Sulfur Dioxide (SO2 ) high accuracy [Calibrated]

9377-HA-P

B, C, F

Ammonia (NH3 ) for low concentrations [Calibrated]

9378-LC-P

B, C, F

Ammonia (NH3 ) for high concentrations [Calibrated]

9378-HC-P

B, C, F

Methane (CH4 ) and Combustible Gas [Calibrated]

9379-P

B, C, F

Hydrogen Sulfide (H2S) [Calibrated]

9381-P9387

B, C, F

Luminosity (Luxes accuracy)

9325-P

B, C, F

Ultrasound (distance measurement)

9246-P

D

Particle Matter (PM1 / PM2.5 / PM10) - Dust

9387-P

Table: Sensor sockets configuration for Smart Cities PRO model

For more technical information about each sensor probe, go to the Sensors section on this guide:

Calibrated gas sensors are manufactured once the order has been placed to ensure maximum durability of the calibration feature. The manufacturing process and delivery may take from 4 to 6 weeks. The lifetime of calibrated gas sensors is 6 months working at maximum accuracy. We strongly encourage our customers to buy extra gas sensors to replace the original ones after that time to ensure maximum accuracy and performance.

Sensors

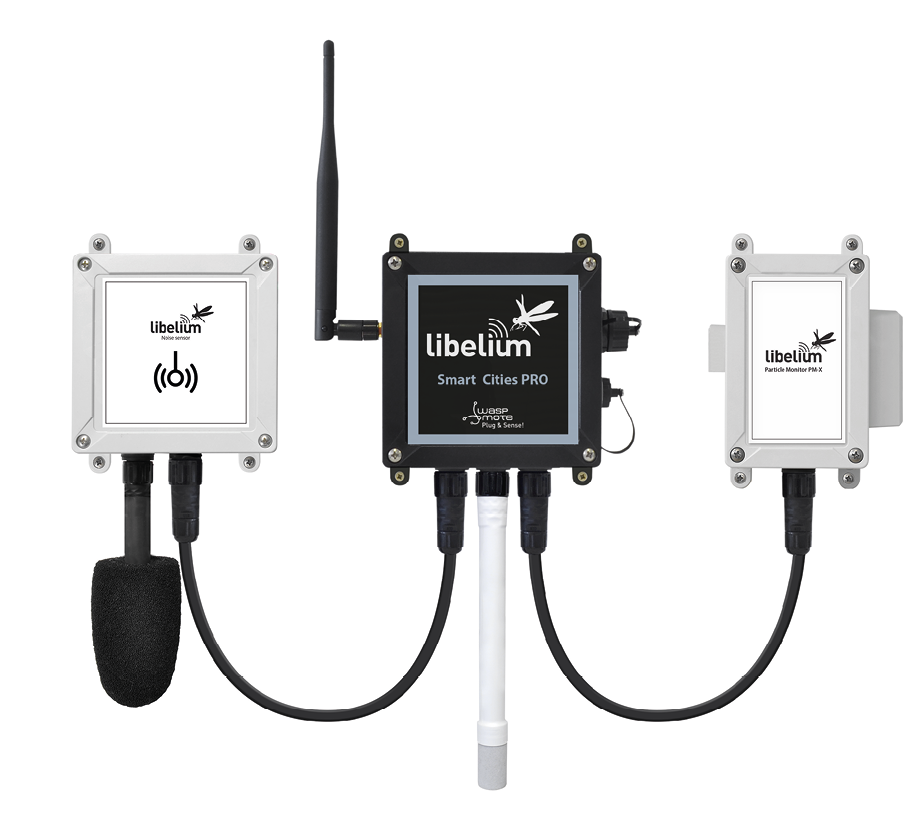

Figure: Smart Cities PRO Waspmote Plug & Sense! model
